FRAME
FRAME
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Full Integrated Battery, Slider Dropout
MAAT
Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
SUSPENSION
VERENDE VOORVORK
SR Suntour NEX-E25 NLO, 50mm, Lockout
E-BIKE SYSTEM
MOTOR
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
ACCU
Bosch PowerTube 500
STUURBEDIENING
Bosch LED Remote

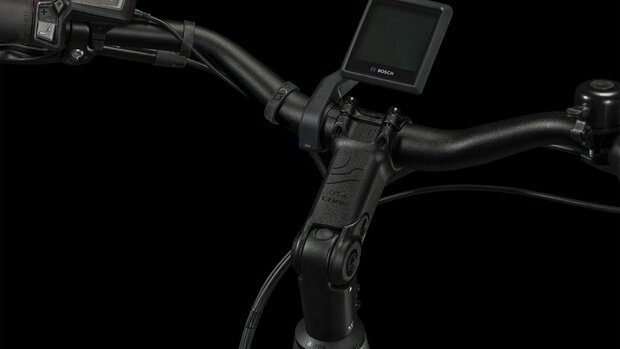

DISPLAY
Bosch Intuvia 100
![](https://azwest1xfg344.blob.core.windows.net/azwesc1xfg346/media/a6/73/51/1660306145/Spec_Bosch_Display_Intuvia100.jpg)
DRIVETRAIN & BRAKES
REMSYSTEEM
Shimano BR-MT410, Hydr. Disc Brake (180/180)
SCHAKELAAR
Shimano Nexus SL-C6000-8, Revoshift
CRANKS
ACID E-Crank, 38T, 165mm
ACHTERKRANS
Shimano Nexus, 20T
KETTING
KMC Z610
COCKPIT
STUUR
CUBE Comfort Shape Bar
STUURPEN
CUBE Comfort Stem Pro, 31.8mm, Adjustable
HANDVATTEN
ACID Travel Comfort Gripshift
BALHOOFDLAGERS
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
WHEELS
VOORNAAF
Shimano HB-TX505, QR, Centerlock
ACHTERNAAF
Shimano Nexus SG-C6001-8D, 8-Speed, Centerlock, Nut
VELGEN
CUBE EX23, 36H, Disc, Tubeless Ready
BANDEN
Conti Contact Urban, SafetyPro, 50-622
FINISHING KIT
ZADELPEN
CUBE Suspension Seatpost HD, 30.9mm
ZADEL
Natural Fit Shen
PEDALEN
ACID PP Trekking

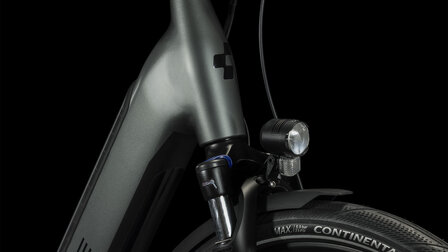

VOORLICHT
ACID Front Light PRO-E 60, 12V, DC
ACHTERLICHT
ACID Mudguard Rear Light PRO-E, 12V, DC
STANDAARD
ACID FM Pure Kickstand
SPATBORDEN
ACID 56 BB-Mount
BEL
Easy Bell
BAGAGEDRAGER
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
