| Type |

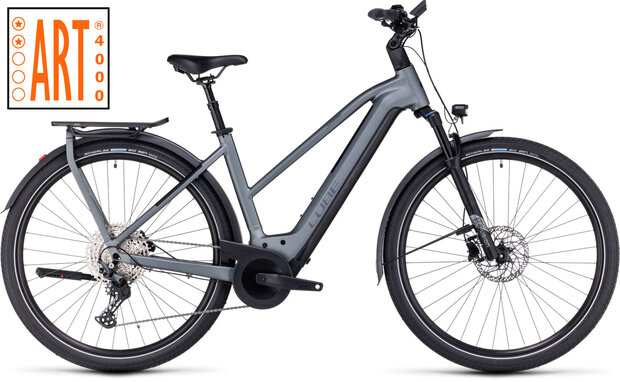

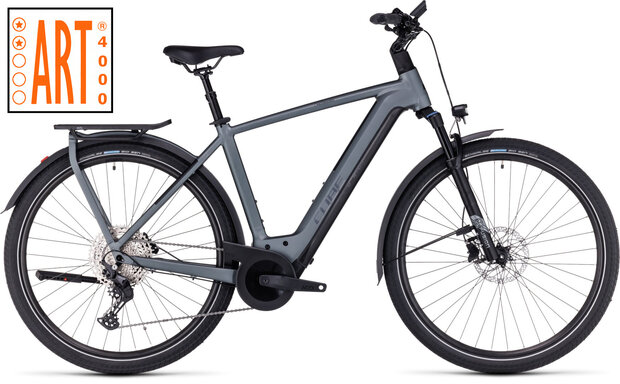

CUBE KATHMANDU HYBRID PRO 750 |
| Frame |
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork |
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout |
| Shock |
|
| Headset |
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem |
CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar |
CUBE Comfort Trail Bar, 700mm |
| Bar extensions |
|
| Rear derailleur |
Shimano Deore RD-M5100-SGS, 11-Speed |
| Front derailleur |
|
| Integrated shifters/brakelevers |
|
| Shifters |
Shimano Deore SL-M5100, Rapidfire-Plus |
| Brake system |
Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Crankset |
ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Crankset chainring sizes |
40T |
| Cassette |
Shimano Deore CS-M5100, 11-51T |
| Number of gears |
11 |
| Chain |
KMC X11 |
| Wheelset (system wheels) |
|
| Rims |
CUBE EX23, 36H, Disc, Tubeless Ready |
| Front hub |
Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear hub |
Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| Tires |
Schwalbe Big Ben, Performance, K-Guard, 55-622 |
| Front tire |
|
| Rear tire |
|
| Saddle |
Natural Fit Sequence Comfort |
| Seat post |
CUBE Suspension Seatpost HD, 30.9mm |
| Front light |
CUBE Shiny 50 Lux, 12V, DC |
| Rear light |
ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand |
ACID FM Pure Kickstand |
| Mudguard |
ACID 65 Integrated Carrier 3.0 |
| Chain protection |
|
| Bell |
Ring Bell |
| Carrier |
ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Engine |
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery |
Bosch PowerTube 750 |
| Charger |
Bosch 4A |
| Display |
Bosch Kiox 300 |
